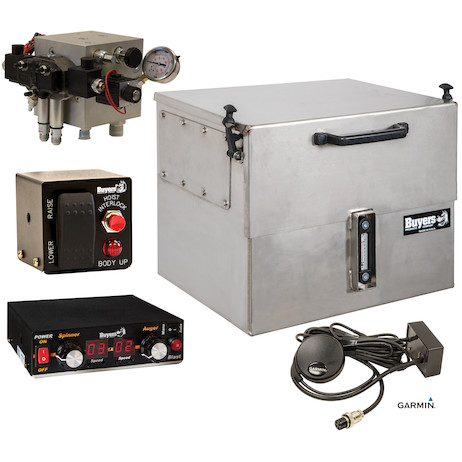

15 Gallon Central Hydraulic System - 4 Function, Electric On/Off, Compact Reservoir, with GPS
$5,746.69
Product Information
Description:
Is designed for quick and easy installation.
Technical Details
- Mfg #
- 6381544
- SKU
- 6381544
- UPC
- 724920195775
- NMFC #
- 181390
- Weight
- 200 lbs.
- Dimensions
- 36 × 30 × 25 inches
- Oil Level/Temperature Gauge Included
- Yes
- Outlet Port
- 2 NPT
- Spreader Control Included
- Yes
- Number of Functions Supported
- 4
- Reservoir Volume (Gal.)
- 15 gallons
- Magnetic Drain Plug
- Yes
- Spreader Control Type
- Electric Over Hydraulic
- Port Relief Angle
- 1800 poundpersqin
- Work Ports
- 1/2 SAE ORB (-8)
- GPS Included?
- Yes
- Reservoir Mount Position
- Side Mount

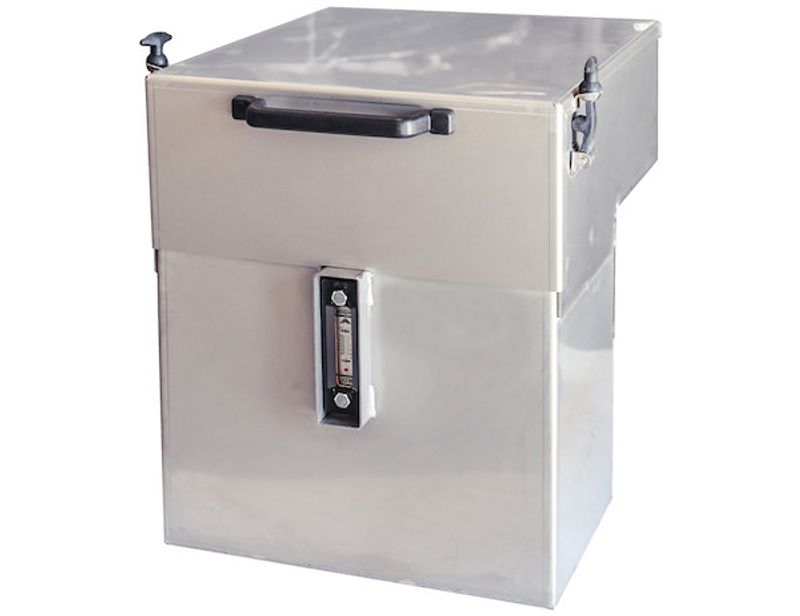

- Reservoir Type
- Compact
- Plow Control Included
- Yes
- Hoist Action
- Power Up/Power Down - 1 Port Relief
- Maximum Pressure
- 3000 poundpersqin
- Inlet Port
- 3/4 SAE ORB (-12)
- Suction Filter Rating
- 150 micron
- Spreader Controller
- HVC05
- Hoist Control Included
- Yes
- Suction Filter Included?
- Yes
- Spinner Port
- 1/2 SAE ORB (-8)
- Suction Port
- 2 NPT
- Suction Filter Flow Rating
- 49 gallonperminute
- Return Line Filter Included?
- Yes
- Plow Control Type
- Electric
- Auger/Chain Port
- 1/2 SAE ORB (-8)
- Plow Action
- Power Up/Power Down
- Reservoir Material
- 304 Stainless Steel
- GPS Capable?
- Yes
- Hoist Control Type
- Electric
- Main Relief Setting
- 3000 poundpersqin
- Return Line Filter Rating
- 10 micron
- Port Relief Hoist
- 500 poundpersqin
- Return Line Filter Flow Rating
- 26 gallonperminute
- Maximum Flow Rate
- 28 gallonperminute
