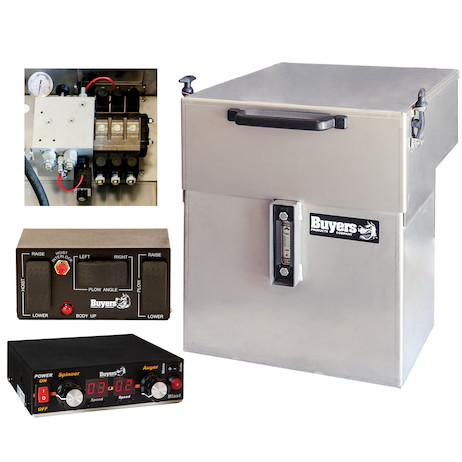

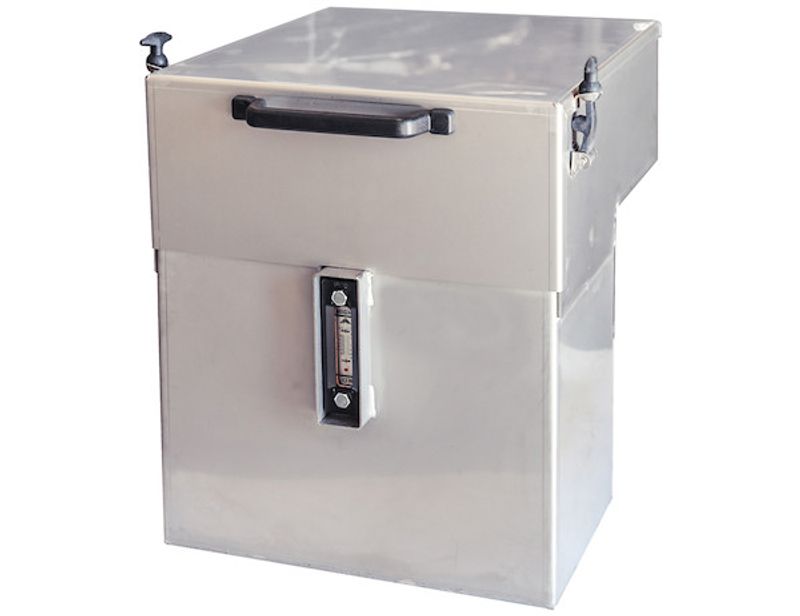

15 Gallon Central Hydraulic System - 6 Function, Electric On/Off, Standard Reservoir, No GPS
$4,962.56
Product Information
Description:
Is designed for quick and easy installation.
Technical Details
- Mfg #
- 6381560
- SKU
- 6381560
- UPC
- 724920151504
- NMFC #
- 181390
- Weight
- 192 lbs.
- Dimensions
- 36 × 28 × 27 inches
- Hoist Action
- Power Up/Power Down - 1 Port Relief
- GPS Included?
- No
- Spreader Control Type
- Electric Over Hydraulic
- Work Ports
- 1/2 SAE ORB (-8)
- Maximum Flow Rate
- 28 gallonperminute
- Return Line Filter Flow Rating
- 26 gallonperminute
- Hoist Control Type
- Electric
- Return Line Filter Rating
- 10 micron
- GPS Capable?
- No
- Plow Action
- Power Up/Power Down
- Main Relief Setting
- 3000 poundpersqin
- Reservoir Material
- 304 Stainless Steel
- Auger/Chain Port
- 1/2 SAE ORB (-8)
- Plow Control Type
- Electric
- Return Line Filter Included?
- Yes
- Suction Filter Flow Rating
- 49 gallonperminute
- Hoist Control Included
- Yes
- Suction Port
- 2 NPT
- Outlet Port
- 2 NPT
- Spinner Port
- 1/2 SAE ORB (-8)
- Reservoir Type
- Standard
- Reservoir Mount Position
- Side Mount
- Plow Control Included
- Yes
- Port Relief Angle
- 1800 poundpersqin
- Magnetic Drain Plug
- Yes
- Spreader Control Included
- Yes
- Reservoir Volume (Gal.)
- 15 gallons
- Number of Functions Supported
- 6
- Oil Level/Temperature Gauge Included
- Yes
- Suction Filter Included?
- Yes
- Inlet Port
- 3/4 SAE ORB (-12)
- Maximum Pressure
- 3000 poundpersqin
- Suction Filter Rating
- 150 micron
- Spreader Controller
- HVC06
- Port Relief Hoist
- 500 poundpersqin
