Product Information
Description:

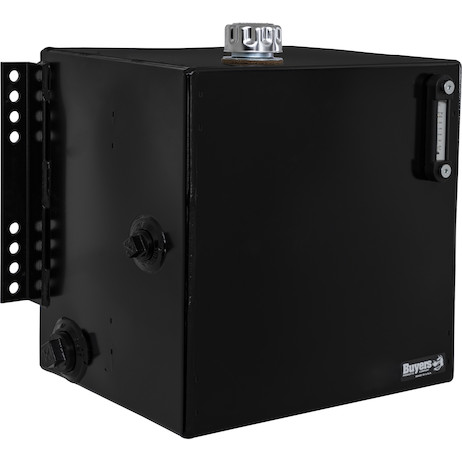

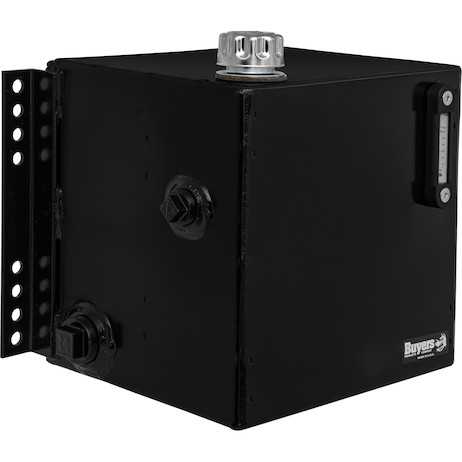

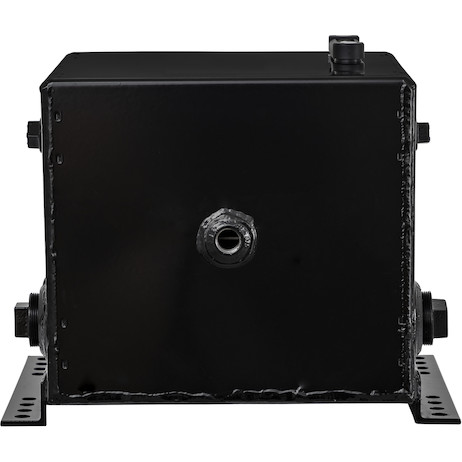

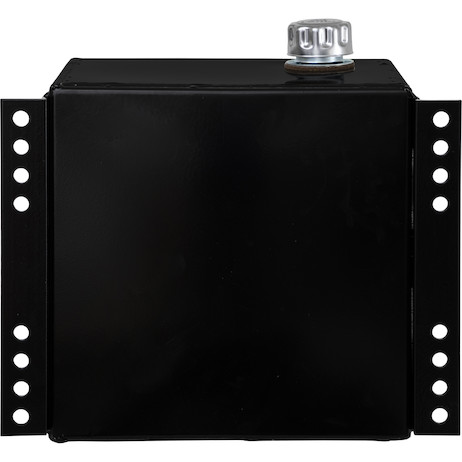

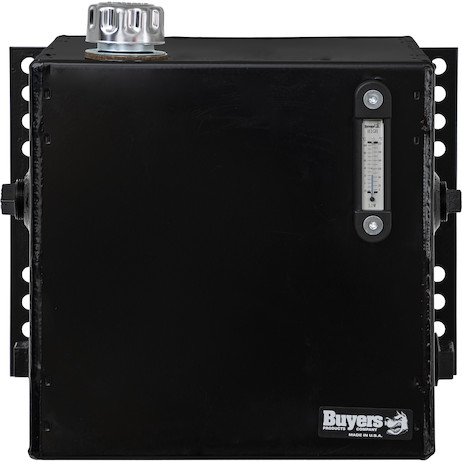

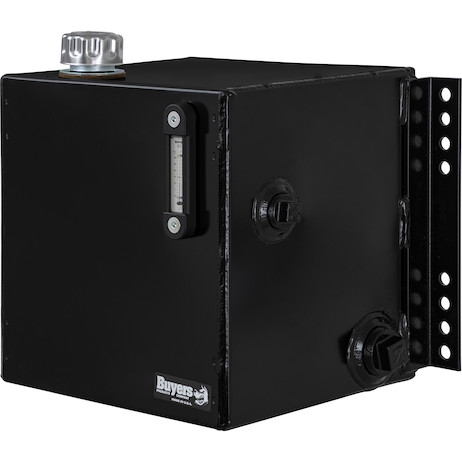

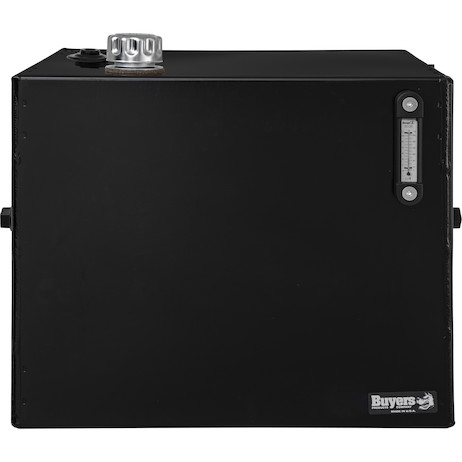

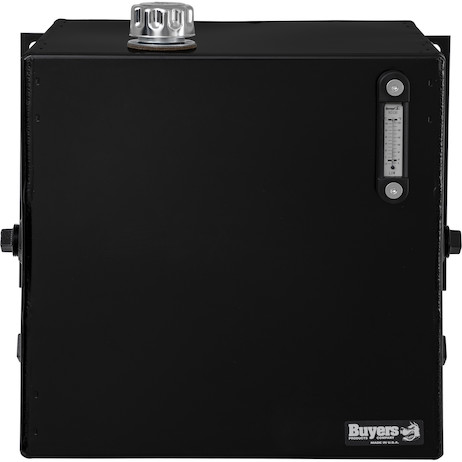

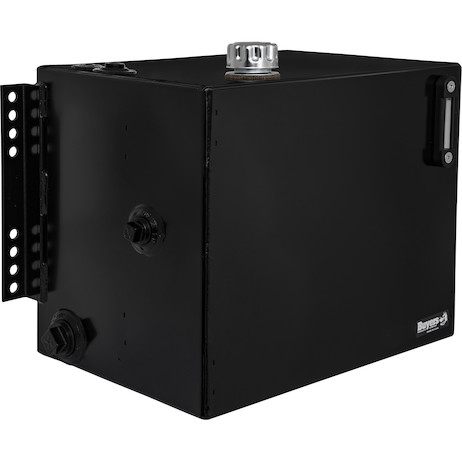

Side Mount Steel Reservoirs
The Buyers Products Side Mount Steel Reservoir features rugged, HRPO steel construction with a welded-on bracket for easy installation to your truck frame. It's available in 7, 15, 25 and 30 gal capacities to suit a variety of smaller dump, landscaping, and spreader applications.
The durable reservoirs are powder-coated black for enhanced corrosion resistance and are internally baffled to reduce sloshing and keep oil temperatures down.
The reservoirs features a 2 in. NPT suction/return port and 1-1/4 in. NPT return port.
Each tank includes a quarter-turn chrome filler/breather unit complete with basket strainer and magnetic drain plug to help keep your oil pure and free of contaminants. A fluid level gauge is also included. (not included on SMR7S)
Features rugged, HRPO steel construction with a welded-on bracket for easy installation.
Features:
- Integrated, welded rear brackets for easy mounting to truck frame.
- Features 2 in. NPT suction/return port.
- Durable HRPO steel construction with black powder-coated finish for corrosion resistance.
- Versatile reservoir works for many hydraulic/fluid storage applications.
- Internally baffled to reduce sloshing and help aid in oil cooling and proper flow.
- Quarter-turn chrome filler/breather unit complete with basket strainer, magnetic drain plug, and fluid level/temperature gauge included (not included on SMR7S).
- Truck and Trailer Hydraulic Systems
- Dump Trucks
Technical Details
- Mfg #
- SMR15S
- SKU
- SMR15S
- UPC
- 724920037921
- NMFC #
- 181390
- Weight
- 57 lbs.
- Dimensions
- 20 × 20 × 16 inches
- Suction Port Size
- 2 NPT
- Additional Port Size
- 3/4 NPT
- Hardware and Brackets Included (y/n)
- No
- Material
- Carbon Steel
- Color
- Black
- Material Gauge
- 13
- Finish
- Powder-Coat
- Usable Capacity
- 11 gallons
- Depth
- 19.58 inch
- Height
- 17 inch
- Capacity
- 15 gallons
- Width
- 14.500 inch
- Integral Brackets (y/n)
- Yes
- Mount Style
- Side
- Integral Level Gauge (y/n)
- Yes
- Style 1 Port Diameter
- 2 inch
- Style 2 Port Diameter
- 1-1/4 inch
- Diffuser Included (y/n)
- No
- Mount Position
- Side Mount
- Included Valve (y/n)
- No
- Reservoir Shape
- Rectangle
- Magnetic Drain Plug (y/n)
- Yes
- Oil Level Gauge (y/n)
- Yes
- Return Line Filter Included (y/n)
- No
- Temperature Gauge (y/n)
- Yes
- Filter Head Material_1
- Aluminum
- Return Line Filter Rating
- micron
- Additional Port Size
- 1 1/4 NPT
- Return Line Filter Element Material
- None
