Product Information
Description:

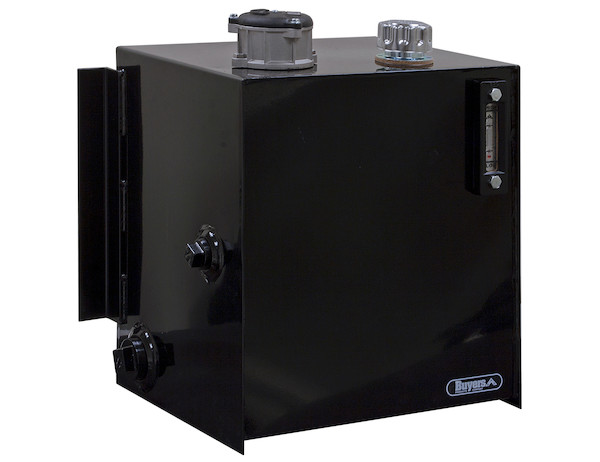

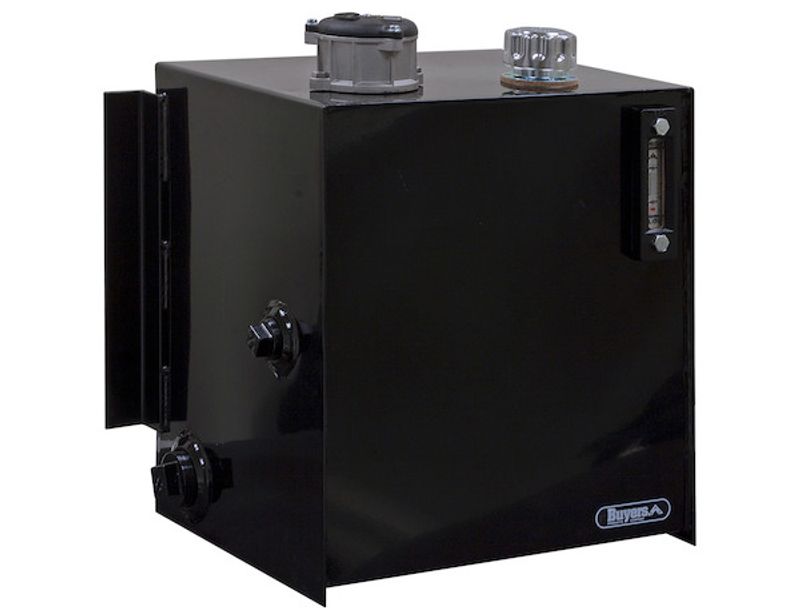

25 Gallon Side Mount Steel Reservoir with Micron Filter
The 25 Gallon Side Mount Steel Reservoir with Micron Filter features tough, durable construction and a system-protective filter for lasting performance. It's ideal for 1 ton trucks and smaller dump, landscaping and similar applications.
The reservoir features 13 Ga HRPO steel that has been factory powder-coated for corrosion resistance, and a welded-on bracket for mounting to your truck frame.
It comes pre-drilled for an included tank-mounted HFA5S series return filter. Choose from a 10 or 25 micron filter (shipped separately).
Other protective features include:
- a quarter-turn chrome filler breather with a wire basket strainer
- a sight fluid level and temperature gauge
- an interior baffle between suction and discharge to aid in fluid cooling
- a magnetic drain plug that helps prevent metallic particle contamination
Features a system-protective filter for lasting performance.
Features:
- Tough, durable 13 Ga HRPO steel that has been factory powder-coated for corrosion resistance.
- Pre-drilled for an included 10 or 25 micron filter (shipped separately).
- Fluid level and temperature gauge included.
- Contaminant-catching magnetic drain plug.
- Welded-on mounting bracket for easy install to the truck frame.
- Landscaping
- Small Plows
- Small Dump Bodies
Technical Details
- Mfg #
- SMR25SF10
- SKU
- SMR25SF10
- UPC
- 724920118743
- NMFC #
- 181390
- Weight
- 73 lbs.
- Dimensions
- 30 × 22 × 17 inches
- Additional Port Size
- 1 1/4 NPT
- Suction Port Size
- 2 NPT
- Return Line Filter Rating
- 10 micron
- Filter Head Material_1
- Aluminum
- Temperature Gauge (y/n)
- Yes
- Oil Level Gauge (y/n)
- Yes
- Return Line Filter Included (y/n)
- Yes
- Magnetic Drain Plug (y/n)
- Yes
- Mount Position
- Side Mount
- Style 1 Port Diameter
- 2 inch
- Included Valve (y/n)
- No
- Reservoir Shape
- Rectangle
- Style 2 Port Diameter
- 1-1/4 inch
- Integral Level Gauge (y/n)
- Yes
- Height
- 20.15 inch
- Mount Style
- Side
- Integral Brackets (y/n)
- Yes
- Depth
- 15.04 inch
- Width
- 24.00 inch
- Usable Capacity
- 18 gallons
- Capacity
- 25 gallons
- Finish
- Powder-Coat
- Material Gauge
- 13
- Color
- Black
- Material
- Carbon Steel
- Hardware and Brackets Included (y/n)
- No
