Buyers Products

30 Gallon Stainless Steel Bulkhead Hydraulic Reservoir

$923.12

Product Information

Description:

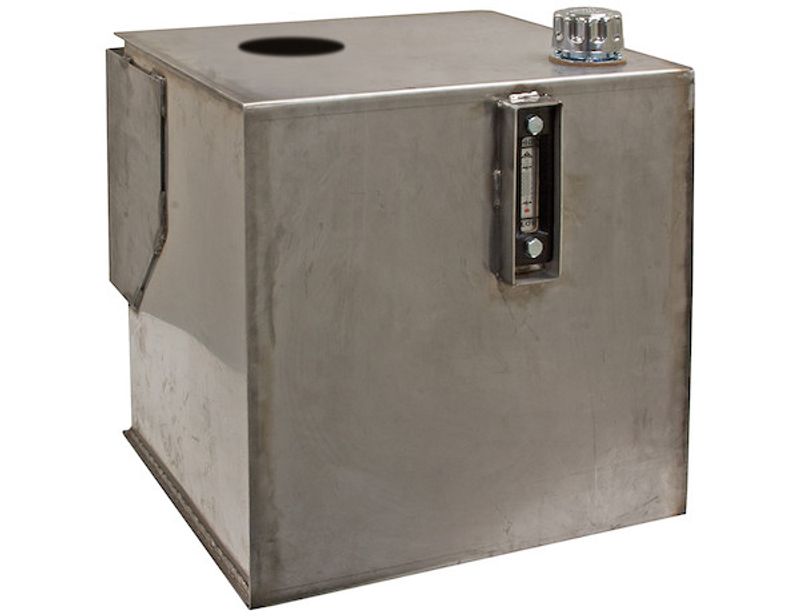

30 Gallon Stainless Steel Reservoir

The 30 Gallon Stainless Steel Reservoir from Buyers Products is made of high-quality 304 stainless steel with welded-on carbon steel mounting brackets. Its sleek, polished appearance will stand up to salt and weather for long lasting use. Great for winter road applications, this reservoir comes fully tested.

The reservoir has several features for optimal fluid operation, including:

  • a quarter-turn chrome filler breather with a wire basket strainer
  • a sight fluid level and temperature gauge
  • an interior baffle between suction and discharge to aid in fluid cooling
  • a magnetic drain plug to aid in preventing metallic particle contamination

The reservoir comes pre-drilled for a tank-mounted HFA5S series return filter (sold separately).

Is made of high-quality stainless steel to stand up to salt and the elements.

Features:

  • Sleek, polished stainless steel will stand up to salt and weather.
  • Pre-drilled for an 10 micron or 25 micron filter (sold separately).
  • Fluid level and temperature gauge included.
  • Contaminant-catching magnetic drain plug.
  • Interior baffle keeps fluid cool and directed where it should be.
  • Fully tested for optimal operation.
  • Walking Floor Trailers
  • Belt Trailers
  • Lowboy Trailers
  • Sliding Axle Trailers

Technical Details

Mfg #
SMR30SS
SKU
SMR30SS
UPC
724920105668
NMFC #
181390
Weight
101 lbs.

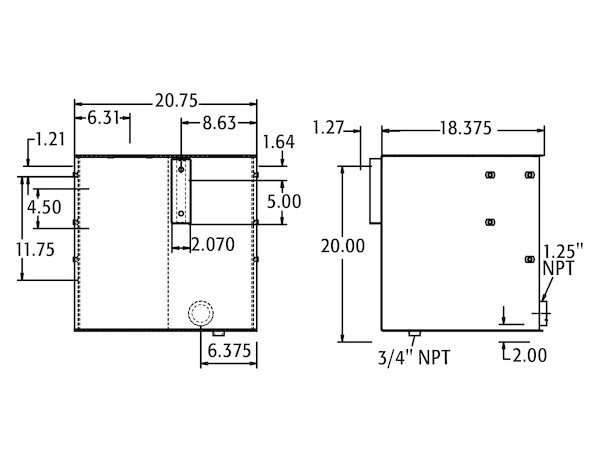

Dimensions
24 × 22 × 23 inches
Additional Port Size
3/4 NPT
Hardware and Brackets Included (y/n)
No
Material
Stainless Steel
Color
Natural
Finish
Smooth
Usable Capacity
30 gallons
Integral Level Gauge (y/n)
Yes
Capacity
30 gallons
Material Gauge
13
Mount Style
Side
Integral Brackets (y/n)
Yes
Style 1 Port Diameter
1-1/4 inch
Reservoir Shape
Rectangle
Included Valve (y/n)
No
Height
20 inch
Depth
18.38 inch
Mount Position
Side Mount
Magnetic Drain Plug (y/n)
Yes
Temperature Gauge (y/n)
Yes
Oil Level Gauge (y/n)
Yes
Filter Head Material_1
Aluminum
Return Line Filter Included (y/n)
No
Suction Port Size
2 NPT
Additional Port Size
1 1/4 NPT
Width
20.75 inch
