Buyers Products

4 Inch Combination LED Stop/Turn/Tail, Backup, and Strobe Light with 32 LEDs

$68.30

Product Information

Description:

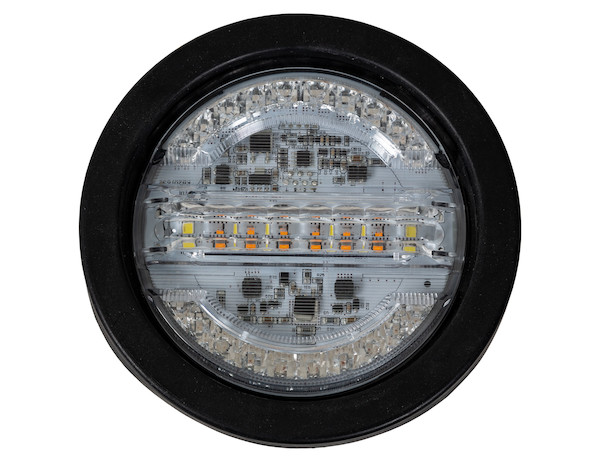

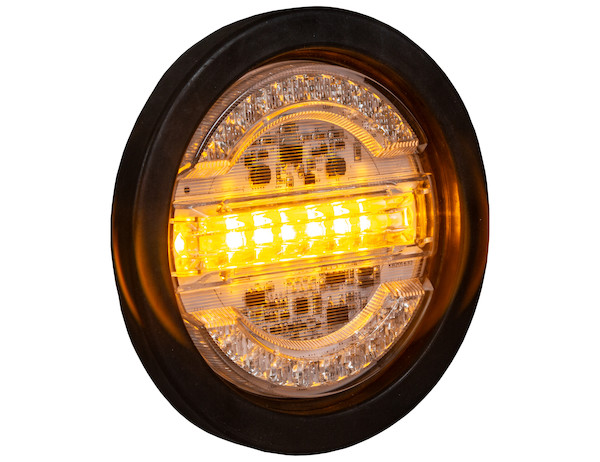

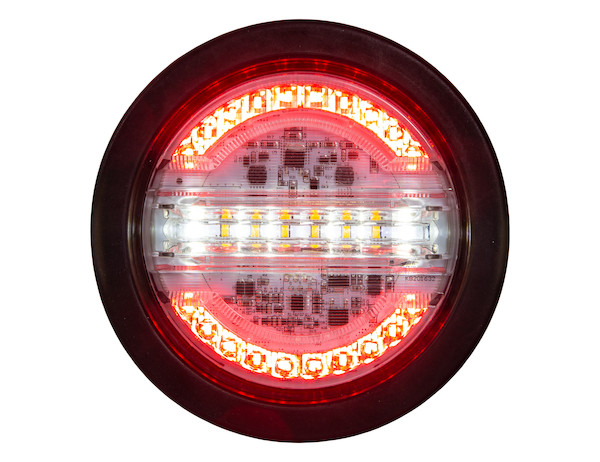

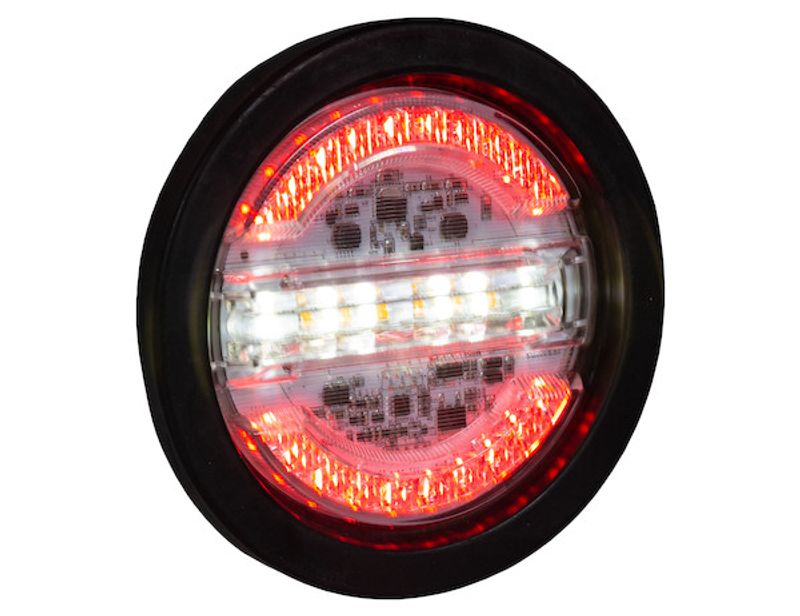

Combination 4 Inch LED Stop/Turn/Tail, Backup, and Amber Strobe Light

Buyers Products Combination 4 Inch LED Stop/Turn/Tail, Backup, and Amber Strobe Light packs a DOT stop/turn/tail, DOT backup, and warning strobe into a single all-purpose fixture.

This versatile light is CA13 certified and rated IP69K for extreme dust resistance and waterproofing. The Stop/Turn/Tail and Backup functions meet FMVSS/CMVSS 108 regulations. The strobe features 19 flash patterns and is rated SAE Class 1 J595 Class 1. It also has synchronous and alternating capabilities when paired with other strobes.

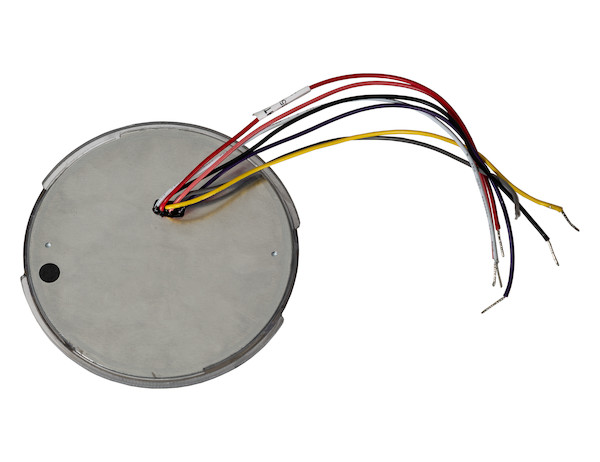

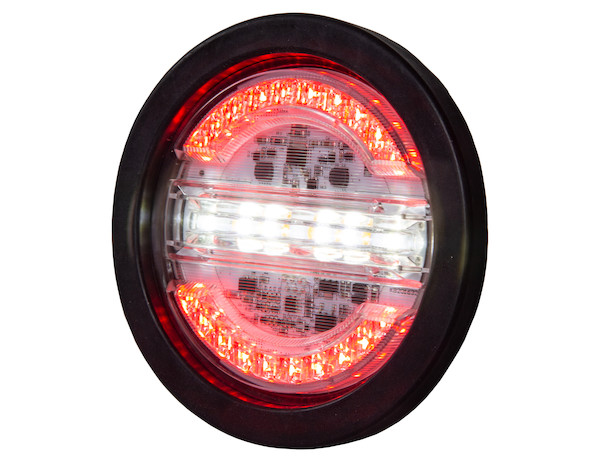

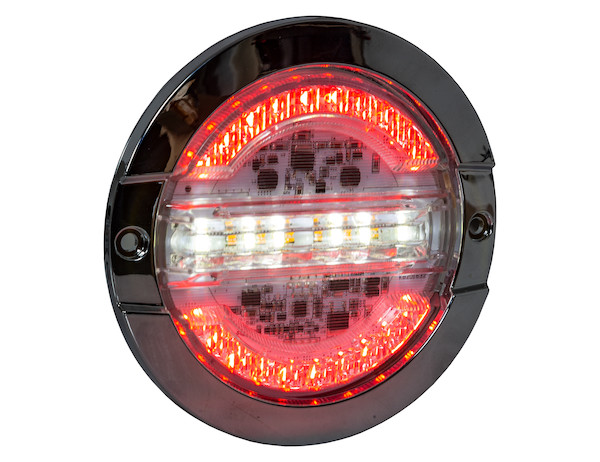

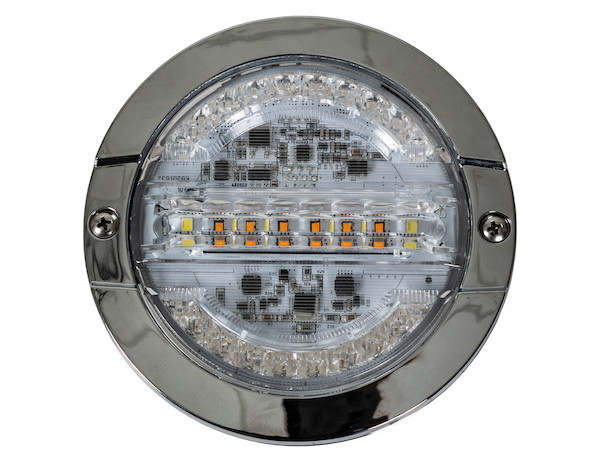

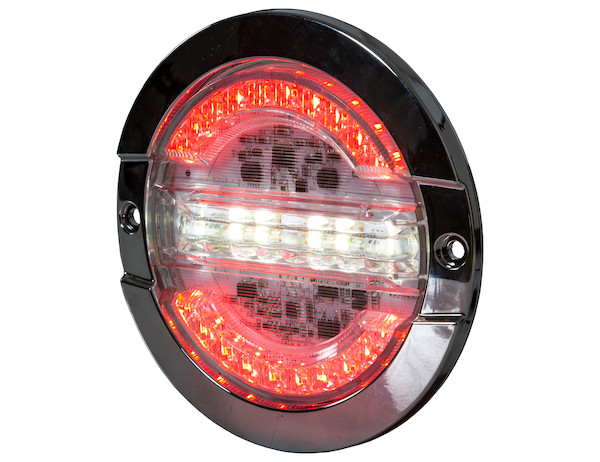

Multiple mounting options are included for your convenience: Grommet Mounting or Screw Mount with Chrome Cover. The light has 7-3/4 in. leads with blunt cut ends.

A multi-purpose light with backup and stop/turn/tail functions that meet DOT FMVSS 108 regulations and an SAE J595 Class 1 strobe all in one fixture.

Features:

  • 5624424 features a Patent Pending combination light optic design.
  • A DOT backup light, a DOT stop/turn/tail light, and an amber strobe light all in one convenient fixture.
  • DOT lights meet FMVSS/CMVSS 108 regulations.

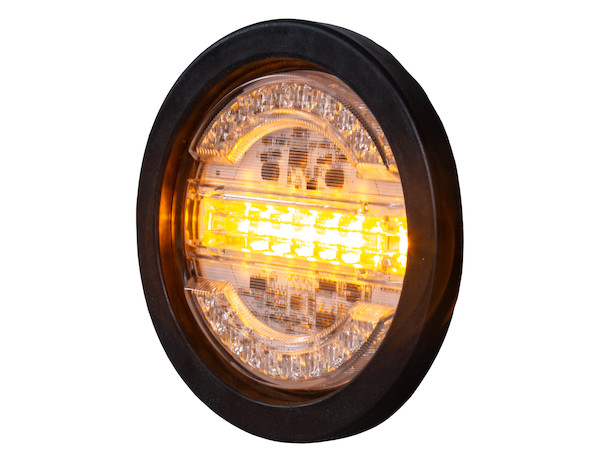

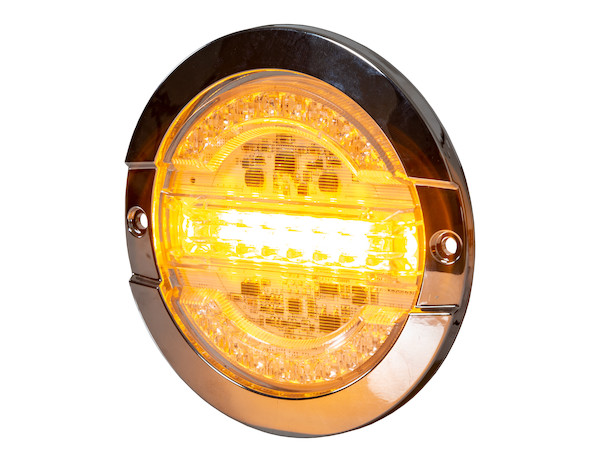

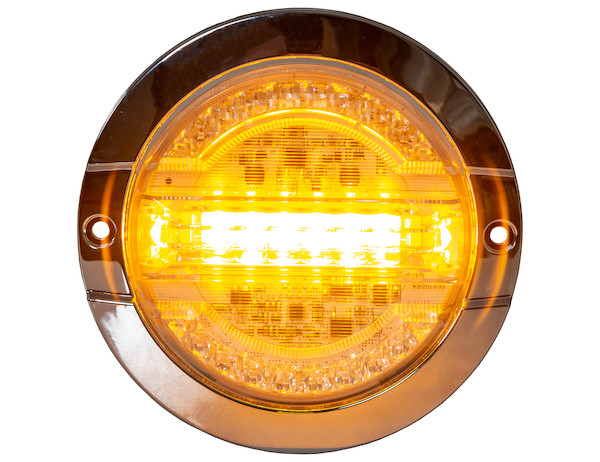

  • Strobe function features 19 flash patterns and has synchronous and alternating functions.
  • Rated SAEJ595 Class 1.
  • CA13 certified.
  • Rated IP69K for extreme dust resistance and waterproofing.
  • Utility Vehicles
  • Service Vehicles
  • Construction Vehicles
  • Refuse Vehicles

Technical Details

Mfg #
5624432
SKU
5624432
UPC
724920174152
NMFC #
17870SUB5
Weight
1 lbs.
Dimensions
6 × 6 × 1 inches
California Title 13
True
SAE Classification
Class 1
Number of LEDs
32
Color
Amber/Red
Hard Wired or Plug
Hard Wired
Lens Shape
Round
Lens Material
Polycarbonate
Wattage
16 watts
Lead Length
7.75 inch
Voltage
10-33 vdc
Amp draw at 12 Volts
1.1 amps
Type of Plug
Blunt Cut
Number of Wires
7
Housing Material
Aluminum
Overall Width
0.55 inch
Depth
4.13 inch
Height
4.29 inch
Mount Type
Grommet or Surface Mount
IP Rating
IP69K
