Buyers Products

45 Ton 4-Hole Air Compensated Pintle Hook

$429.92

Product Information

Description:

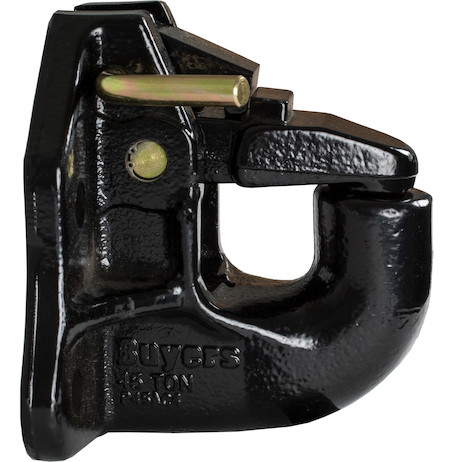

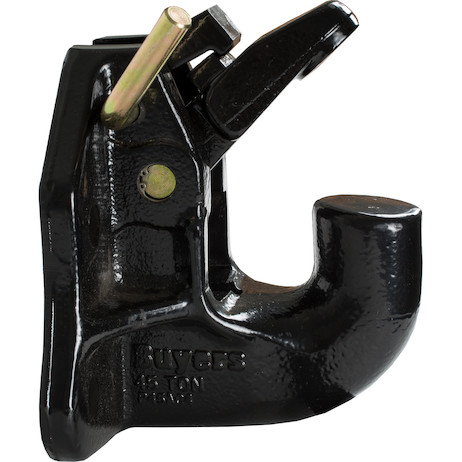

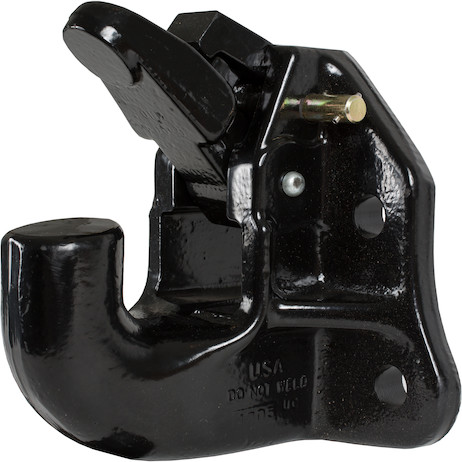

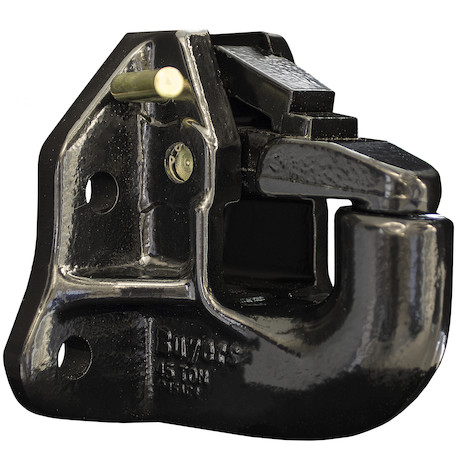

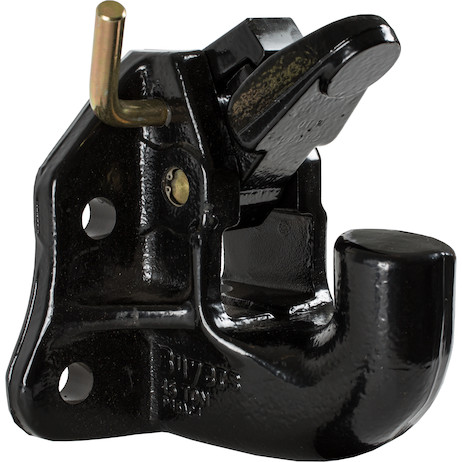

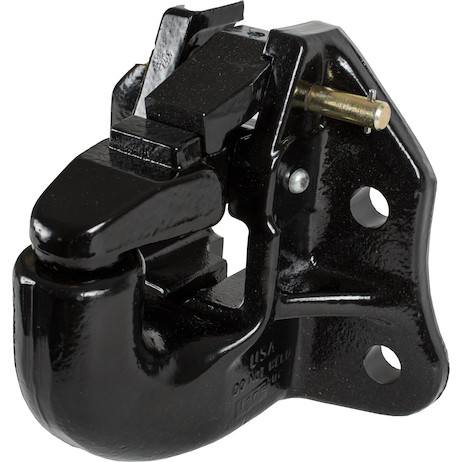

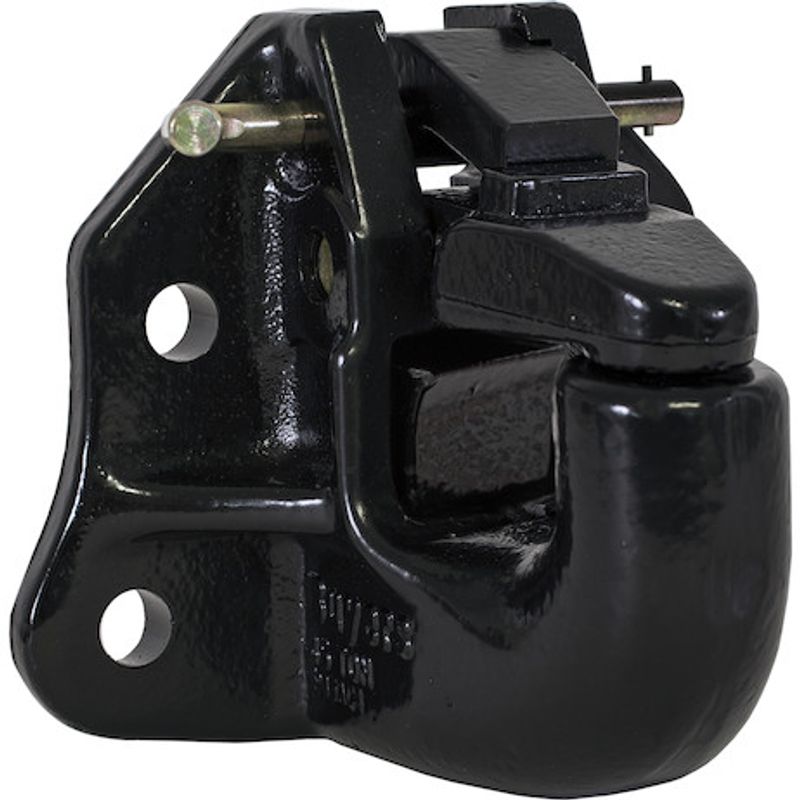

45 Ton Air Compensated Pintle Hook, 4-Bolt

The 45 Ton Air Compensated Pintle Hook with 4 Mounting Holes from Buyers Products cushions movement between the pintle hook and tow ring. This feature saves wear and tear on the parts, especially in sudden motion or braking situations.

The 4 hole mount, bolt-on pintle hook uses the vehicle's air system to hold the drawbar eye closely to reduce wear, absorb shock, and prevent uncoupling during operation.

The hook is ideal for heavy duty applications such as semi trailers, both off-road and over-the-road.

It requires an air brake chamber, which can be ordered separately or together as a kit.

Reduces wear and absorbs shock in heavy duty towing situations.

Features:

  • Reduces wear and tear on towing parts by reducing slack and movement.
  • Makes for a more comfortable ride through shock absorption between the vehicle and trailer.
  • Extremely strong austempered ductile iron construction.
  • Durable corrosion-resistant powder-coated finish.
  • Tows up to 90,000 lb.

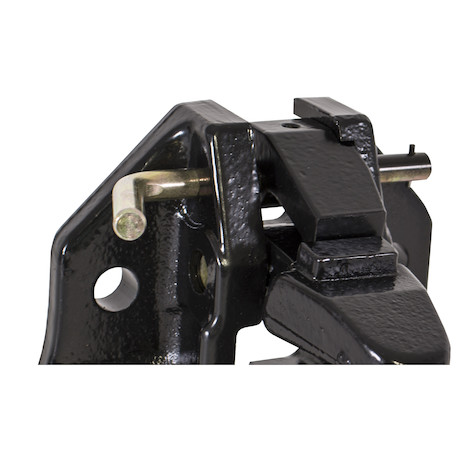

  • Spring-loaded pintle hook lock arm provides a secure hold on 2-3/8 in. to 3 in. I.D lunette eyes and drawbars.
  • Heavy Duty Towing
  • Off-Road Towing
  • Semi Trailers
  • Over-The-Road Towing

Technical Details

Mfg #
P45AC4
SKU
P45AC4
UPC
724920069595
NMFC #
184850
Weight
26 lbs.
Dimensions
9 × 8 × 8 inches
Includes
Pintle Hook Only
M.G.T.W. (lbs)
90,000 pounds
M.V.L. (lbs)
18,000 pounds
Color
Black
Finish
Powder-Coat
Material
Austempered Ductile Iron
Pintle Hook Type
Air Compensated
Horizontal Hole Spacing (in.)
5.25/6.50 inch
Mounting Hole Diameter (in.)
0.781 inch
Vertical Hole Spacing (in.)
3.00 inch
Drawbar Eye Inner Dia. (in.)
2.38-3.00 inch
Ball Diameter (in.)
- inch
