Buyers Products

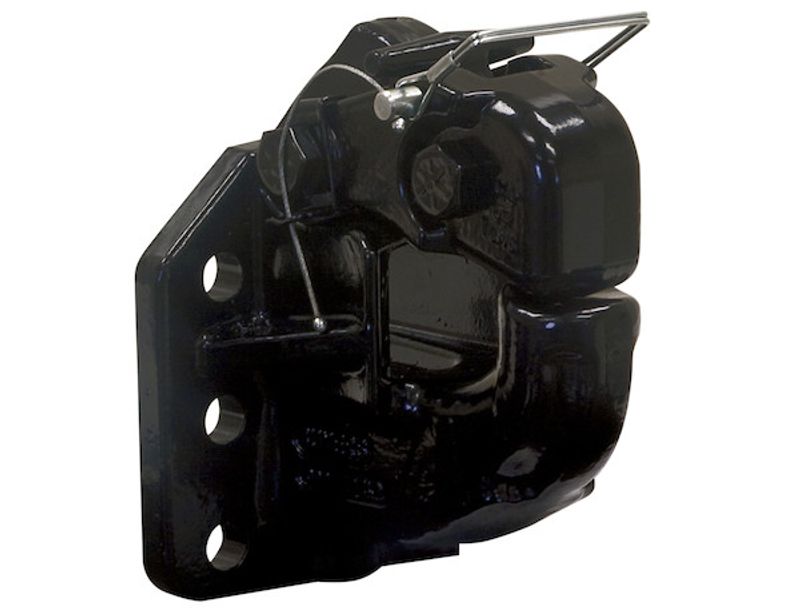

50 Ton Air Compensated Pintle Hook (without Chamber and Plunger)

$227.95

Product Information

Description:

50 Ton Air Compensated Pintle Hook, 6 Bolt

The 50 Ton Air Compensated Pintle Hook from Buyers Products cushions movement between the pintle hook and tow ring. This saves wear and tear on the parts, as well as improves stability, especially in sudden motion or braking situations.

The 6 hole mount, bolt-on pintle hook works in tandem with the vehicle's air system to hold the drawbar eye closely to reduce wear, absorb shock, and prevent uncoupling during operation. The hook is ideal for heavy-duty applications such as semi trailers, both off- and over-the-road. This product can also be used without the air chamber and plunger as a standard pintle hook. For off-road use, the load should be reduced by 25% and a swivel type trailer drawbar should be used.

Reduces wear and absorbs shock in heavy duty towing situations.

Features:

  • Reduces wear and tear on towing parts by reducing slack and movement.
  • Makes for a more comfortable ride through shock absorption between the vehicle and trailer.
  • Extremely strong austempered ductile iron construction.
  • Durable corrosion-resistant powder-coated finish.
  • Great for on- or off-road use.
  • Spring-loaded pintle hook lock arm provides a secure hold on 2 -3/8 in. to 3 in. I.D lunette eyes.
  • Tows up to 100,000 lb.
  • Requires (2) mounting hardware kits.
  • Heavy Duty Towing
  • Off-Road Towing
  • Semi Trailers
  • Pup Trailer Towing

Technical Details

Mfg #
PH50
SKU
PH50
UPC
724920100595
NMFC #
184850
Weight
29 lbs.
Dimensions
10 × 8 × 8 inches
M.G.T.W. (lbs)
100,000 pounds
Includes
Pintle Hook Only
Material
Cast Steel
Color
Black
M.V.L. (lbs)
20,000 pounds
Pintle Hook Type
Air Compensated
Finish
Powder-Coat
Drawbar Eye Inner Dia. (in.)
2.38-3.00 inch
Ball Diameter (in.)
- inch
Vertical Hole Spacing (in.)
2.125 Bottom / 2.375 Top inch
Horizontal Hole Spacing (in.)
5.00 inch
Mounting Hole Diameter (in.)
0.781 inch
