Buyers Products

6 Inch Combination LED Stop/Turn/Tail, Backup, and Strobe Light, 24 LEDs

$56.97

Product Information

Description:

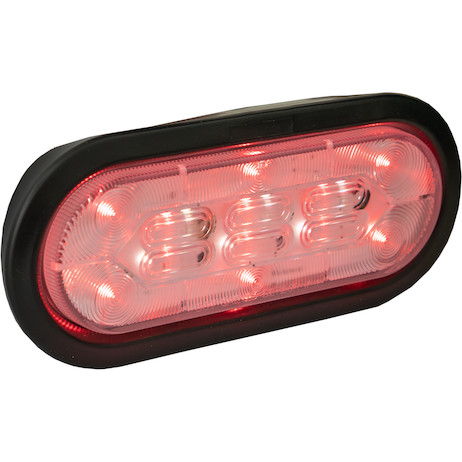

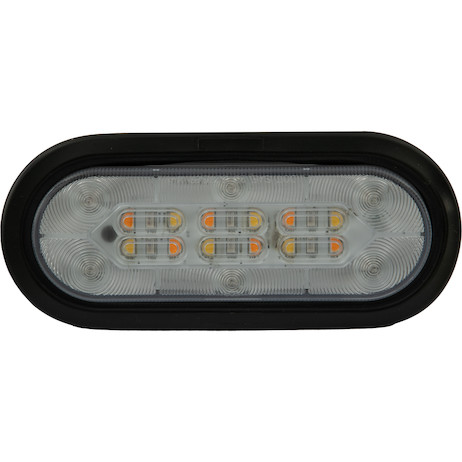

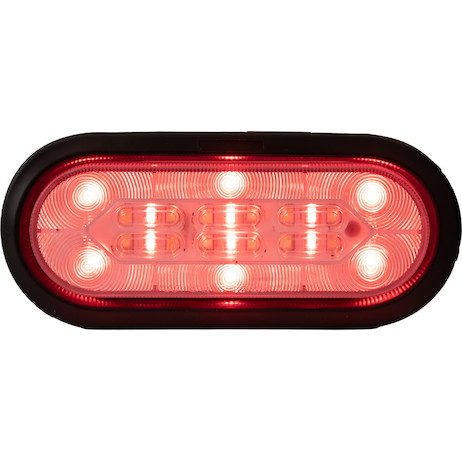

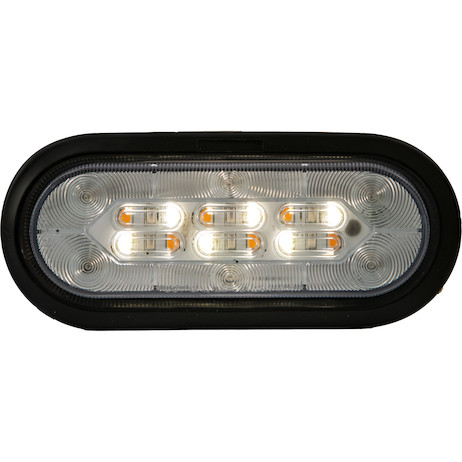

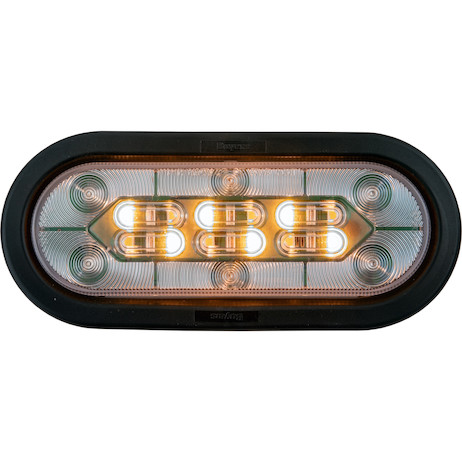

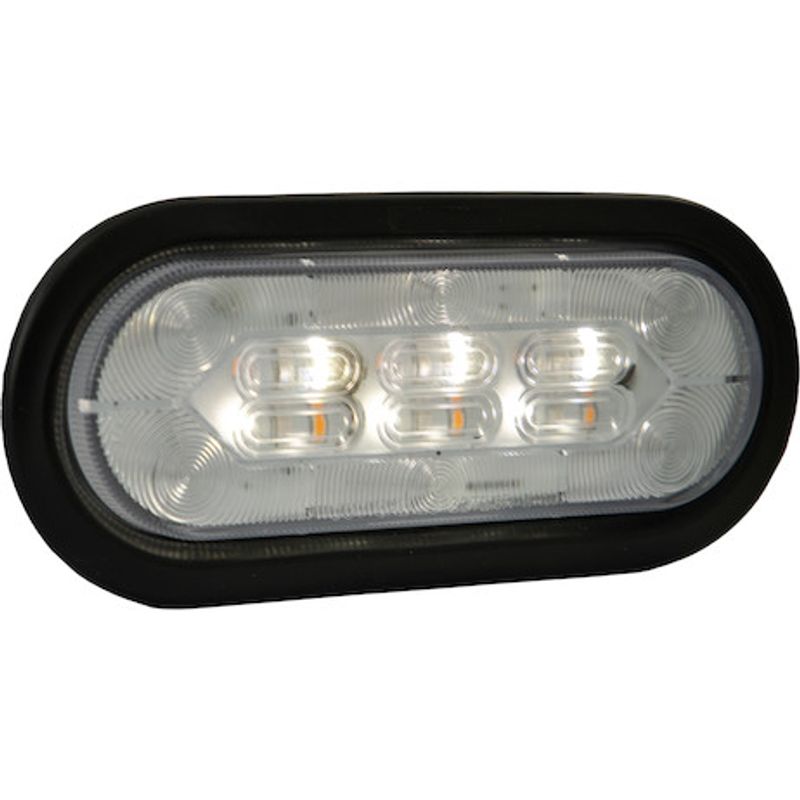

Combination 6 Inch LED Stop/Turn/Tail, Backup, and Amber Strobe Light

Buyers Products Combination 6 Inch LED Stop/Turn/Tail, Backup, and Strobe Light packs a DOT stop/turn/tail, DOT backup, and amber warning strobe into a single all-purpose fixture.

This versatile light is CA13 certified and rated IP69K for extreme dust resistance and waterproofing. The Stop/Turn/Tail and Backup functions meet FMVSS/CMVSS 108 regulations. The amber strobe features 19 flash patterns and is rated SAE Class 1 J595 Class 1. It also has synchronous and alternating capabilities when paired with other strobes.

Multiple mounting options are included for your convenience. A grommet and mounting hardware are included for surface or recessed mounting. The light has 7-3/4 in. leads with blunt cut ends.

A multi-purpose light with backup and stop/turn/tail functions that meet DOT FMVSS 108 regulations and an SAE J595 Class 1 strobe all in one fixture.

Features:

  • 5626424 features a Patent Pending combination light optic design.
  • A DOT backup light, a DOT stop/turn/tail light, and an amber strobe light all in one convenient fixture.
  • DOT lights meet FMVSS/CMVSS 108 regulations.
  • Strobe function features 19 flash patterns and has synchronous and alternating functions.
  • Rated SAEJ595 Class 1.
  • CA13 certified.
  • Rated IP69K for extreme dust resistance and waterproofing.
  • Utility Vehicles
  • Service Vehicles
  • Construction Vehicles
  • Refuse Vehicles

Technical Details

Mfg #
5626424
SKU
5626424
UPC
724920241779
NMFC #
17870SUB5
Weight
1 lbs.
Dimensions
4 × 8 × 2 inches
Height
2.05 inch
Depth
6.38 inch
Overall Width
.59 inch
Housing Material
Aluminum
Number of Wires
7
Amp draw at 12 Volts
1.1 amps
Voltage
10-33 vdc
Type of Plug
Blunt Cut
Lead Length
7.75 inch
Wattage
16 watts
Lens Material
Polycarbonate
Lens Shape
Oval
Hard Wired or Plug
Hard Wired
Color
Amber/Red
Number of LEDs
24
California Title 13
True
Flash Patterns
19
SAE Classification
Class 1
Mount Type
Grommet or Surface Mount
IP Rating
IP69K
