Product Information
Description:

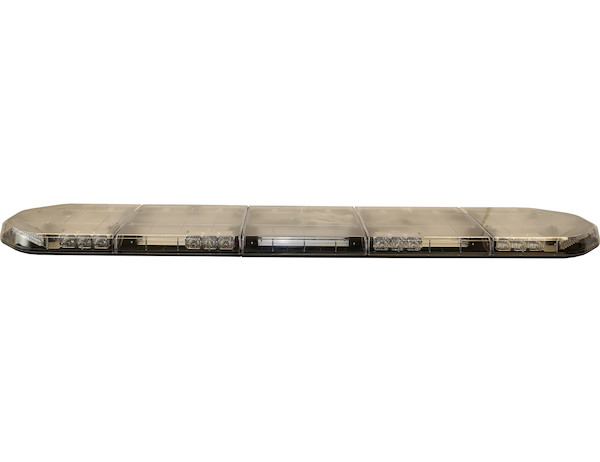

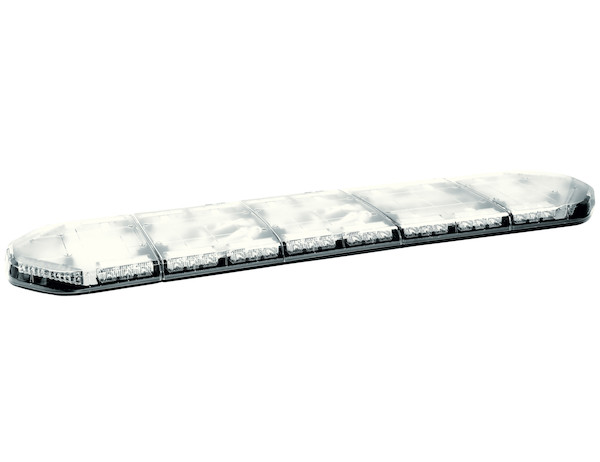

60 Inch LED Modular Light Bars
Buyers Products 60 Inch LED Modular Light Bars are available in seven standard configurations. The amber light bar is SAE Class 1 certified and has a CA13 rating. All models feature 11 flash patterns in five programmable groups for a total of 55 different possible flash sequences. A dimming mode also comes standard.
Middle modules are reflective with three LEDs each. Corner modules have six LEDs each. Bright take down light modules are also available. See "Accessories" below for more details.
The light bar's extruded aluminum frame is excellent at dissipating heat, and the sturdy polycarbonate lens is extremely resistant to impact. Two recessed mounting channels and a 10 ft pre-wired power/function cable make the light bar easy to install and operate.
Mounting feet and controller are sold separately. Please contact Customer Service for more information.
Modular light bars are backed with a 5-year warranty.
Solid colors rated SAE J845 Class 1 with 55 flash sequences.
Features:
- Stock configurations are available to fit any need.
- 11 flash patterns with 5 programmable groups for 55 different flash sequences.
- Amber light bar has a SAE Class 1 and CA13 rating.
- Backed with a 5 year warranty.
- 3024646 Adjustable Plastic Mounting Feet NOT included. Must be purchased separately.
- Work Trucks
- Safety Vehicles
- Utility Trucks
Technical Details
- Mfg #
- 3031546
- SKU
- 3031546
- UPC
- 724920150613
- NMFC #
- 17870SUB5
- Weight
- 36 lbs.
- Dimensions
- 65 × 17 × 8 inches
- Red Stop/Turn/Tail Modules?
- No
- Traffic Adviser?
- No
- Color
- Amber/Clear
- Connector
- Blunt Cut
- Certification
- CA13/SAE J845 Class 1/SAE J595 Class 1
- Built-In Switch
- No
- Hard Wired or Plug
- Hard Wired
- Lens Shape
- Octagonal
- Lens Material
- Polycarbonate
- Number of Flash Patterns
- 55
- Mounts Included
- No
- Number of LEDs per Corner Strobe
- 6
- Number of LEDs per Middle Strobe
- 3
- Lead Length
- 15 inch
- Voltage
- 12 vdc
- Wattage
- 192 watts
- Amp draw at 12 Volts
- 16 amps
- Type of Plug
- Stripped Leads
- Plug Included
- No
- Housing Material
- Multiple
- Overall Width
- 61 inch
- Base / Mount Type
- Surface
- Height
- 2.188 inch
- Depth
- - inch
- Amber Modules
- 6
- Take Downs?
- No
- Clear Modules
- 6
- Class Level
- 1
- Dimming Mode (y/n)
- Yes
