Product Information
Description:
Dump Body-Up Indicator Kit
Buyers Products Dump Body-Up Indicator Kit mounts to the frame of your vehicle to notify you when the dump body is raised, increasing alertness while working. It is designed to reduce the chance of overhead collisions with raised dump bodies.
Waterproof and IP68 rated, this indicator can perform in the most extreme temps: -40 F° to 185 F°. The Body-Up Indicator Kit has 304 stainless steel housing for the ultimate in corrosion resistance.

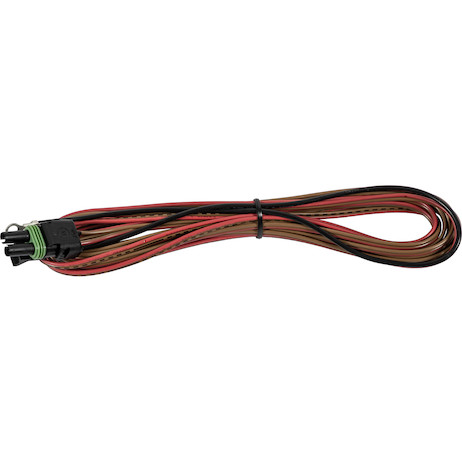

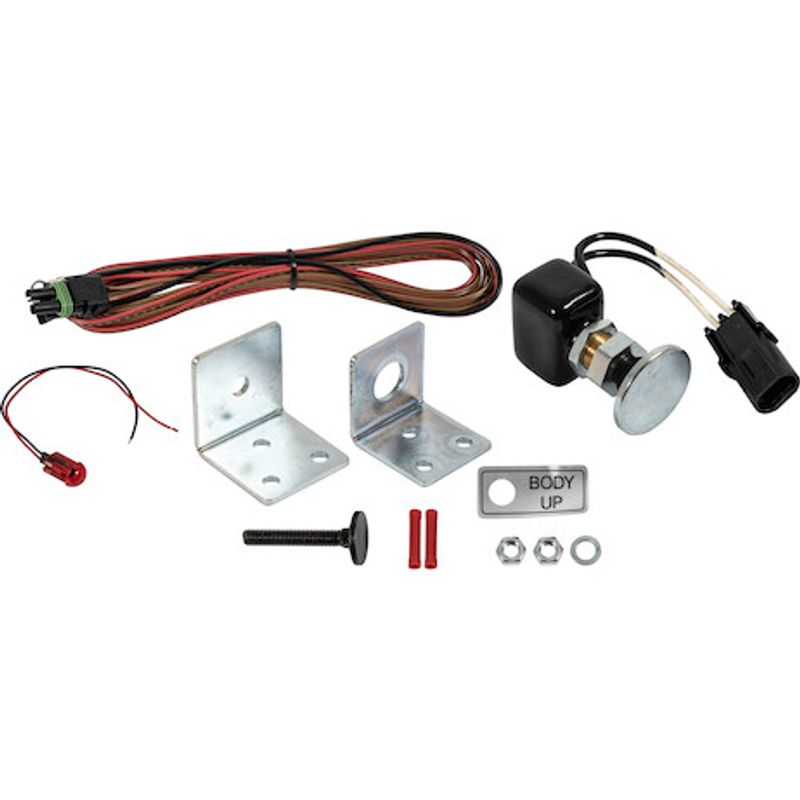

The kit also includes a wiring harness and red indicator light so you'll have everything you need for installation. Choose between a standard red light or a buzzer light with 70 dB alarm.
Mounts to the frame of your vehicle to notify you when dump body is raised.
Features:
- Helps reduce chance of overhead collisions with raised dump bodies.
- Bright red light draws attention if dump body is up.
- Available with or without an audible buzzer.
- Dump Body Applications
- Dump Trucks
- Dump Trailers
Technical Details
- Mfg #
- SK10
- SKU
- SK10
- UPC
- 724920073844
- NMFC #
- 63160SUB10
- Weight
- 1 lbs.
- Dimensions
- 5 × 5 × 4 inches
- Height
- 1.88 inch
- Depth
- 1.88 inch
- Amperage
- 10.0 amps
- Voltage
- 12 vdc
- Buzzer Included?
- No
- Width
- 1.75 inch
- Wiring Harness Length
- 20 feet
- Water Resistant (y/n)
- Yes
- Body Up Style
- Plunger
- Bracket Mounting Hole Diameter
- 0.28 inch
- Mounting Holes Center to Center
- 1.00 inch
- Connector
- Packard
- Indicator Light Included?
- Yes
- Use With
- -
