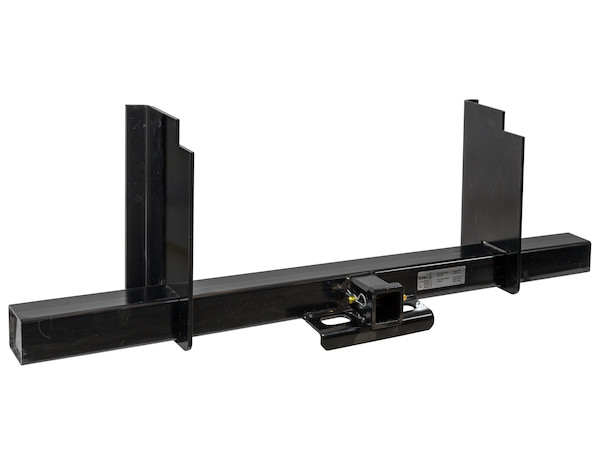

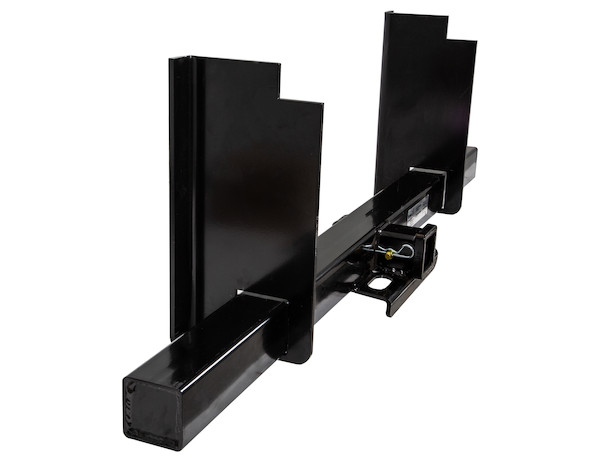

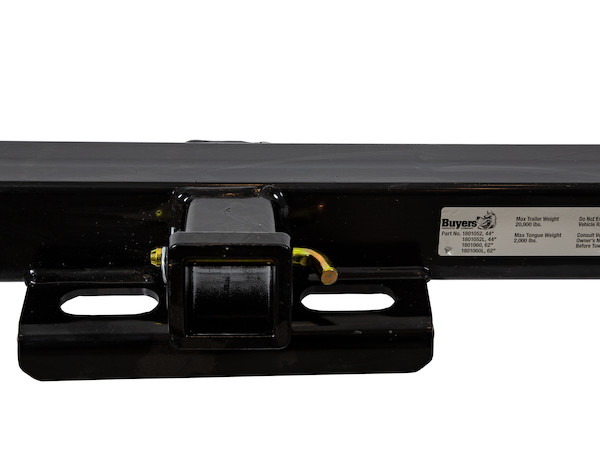

Class 5 62 Inch Service Body Hitch Receiver with 2-1/2 Inch Receiver Tube and 18 Inch Mounting Plates
Product Information
Description:
Class 5 Service Body Hitch Receiver with 2-1/2 Inch Receiver Tube
The Class 5 Service Body Hitch Receiver with 2-1/2 Inch Receiver Tube from Buyers Products is rated up to 20,000 lb. It has a black powder-coated finish for corrosion resistance.

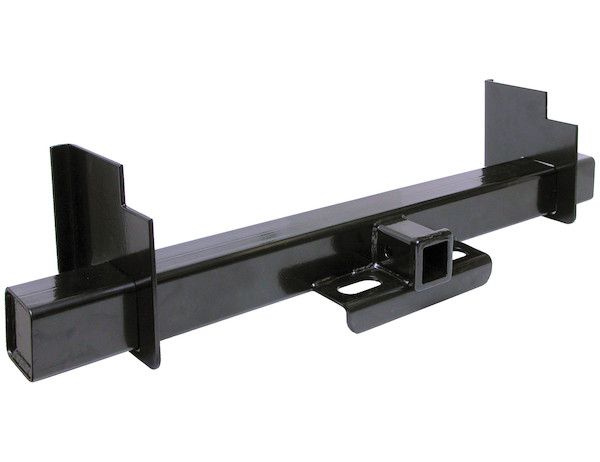

The receiver is available in 44 in. or 62 in. lengths. The 44 in. model is sold with or without mounting plates, and is black powder coated or available unpainted. The ones sold without mounting plates have no rating listed because the installer needs to fabricate their own mounting brackets.
The 62 in. model is sold with standard or tall mounting plates to suit different bumper styles. Plates ship unwelded so you can position them to fit your specific application. All models accept 2-1/2 in. hitches and accessories. Those that come with mounting plates also include a 5/8 in. hitch pin with cotter.
Rated up to 20,000 lb. Accepts 2-1/2 in. hitches and accessories.
Features:
- Rated up to 20,000 lb MGTW.
- Designed for service body trucks.
- Black powder-coated finish for superior corrosion resistance.
- Available in different lengths and with standard or tall mounting plates to suit a wide variety of applications.
- Mounting plates ship unwelded so they can be positioned to suit your needs.
- Platform Trucks
Technical Details
- Mfg #
- 1801060L
- SKU
- 1801060L
- UPC
- 724920166065
- NMFC #
- 106140
- Weight
- 89 lbs.
- Dimensions
- 62 × 11 × 6 inches
- M.V.L. (lbs.)
- 2,000 pounds
- Color
- Black
- M.G.T.W. (lbs.)
- 20,000 pounds
- Material
- Carbon Steel
- Class
- Class V
- Receiver Tube Size (in.)
- 2.5 inch
- Finish
- Powder-Coat
- Application Summary
- Service Body
- Mount Type
- Weld-On
- Width (in.)
- 62.00 inch
- Mounting Plate Height (in.)
- 18.29 inch
