Product Information
Description:

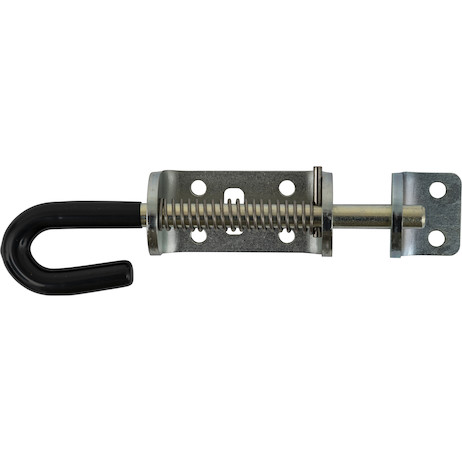

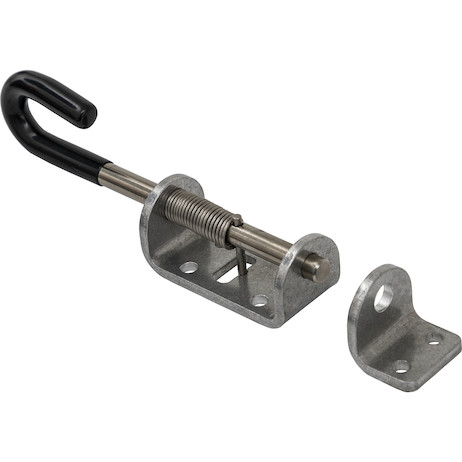

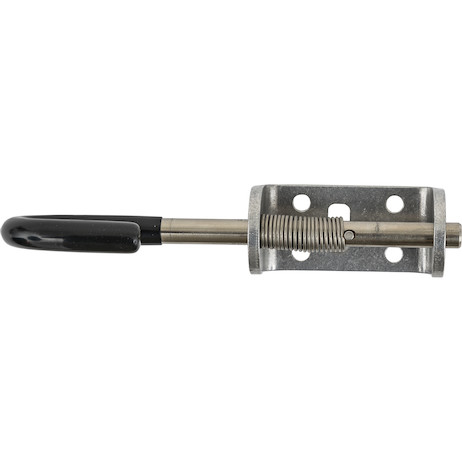

Heavy Duty Spring Latch Assembly with Looped Handle
Buyers Products Heavy Duty Spring Latch Assembly with Looped Handle is ideal where doors, compartments, or panels need to engage and disengage quickly and securely.
The spring-loaded bolt can be locked in the open position as needed; turning the lever allows the bolt to close securely under spring pressure.
The latch is available in your choice of stainless steel or zinc-plated steel. Can be ordered with or without the keeper. Mounting hardware is sold separately.
Is ideal where doors, compartments, or panels need to engage and disengage quickly and securely.
Features:
- Ideal where doors, compartments, or panels need to engage and disengage quickly and securely.
- Corrosion-resistant zinc-plated steel or stainless steel construction.
- Spring loaded bolt can be locked in the open position.
- Turning lever allows the bolt to close under spring pressure.
- Stake Body Assembly
- Trailer Gates
Technical Details
- Mfg #
- B2600SS
- SKU
- B2600SS
- UPC
- 724920236317
- NMFC #
- 94100
- Weight
- 1 lbs.
- Dimensions
- 8 × 2 × 2 inches
- Bolt Material
- Stainless Steel
- Latch Style
- Spring Latch
- Bolt Finish
- Plain
- Housing Material
- Aluminum
- Housing Finish
- Plain
- Handle Finish
- Vinyl Coated
- Handle Material
- Stainless Steel
- Bolt Length (in.)
- 7.50 inch
- Bolt Dia. (in.)
- 0.44 inch
- Housing Width (in.)
- 1.50 inch
- Housing Length (in.)
- 3.26 inch
- Mount Type
- Bolt-On
- Housing Height (in.)
- 1.50 inch
- Pin Length
- 7.50 inch
- Handle Length
- 2.65 inch
- Mounting Holes Center to Center
- 1.50 inch
- Mounting Hole Diameter
- 0.26 inch
- Keeper (y/n)
- No
- Bolt Travel
- 1.34
