Product Information
Description:

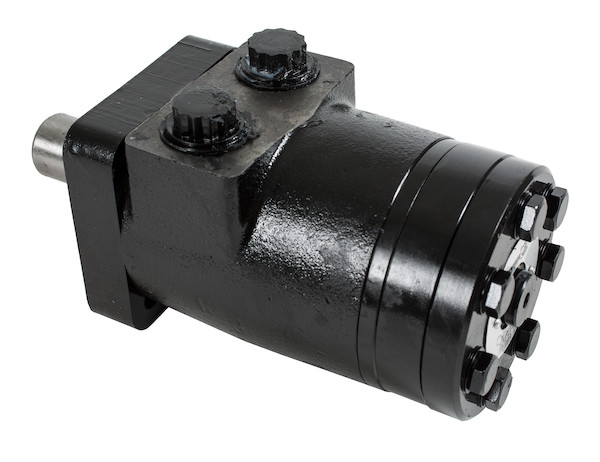

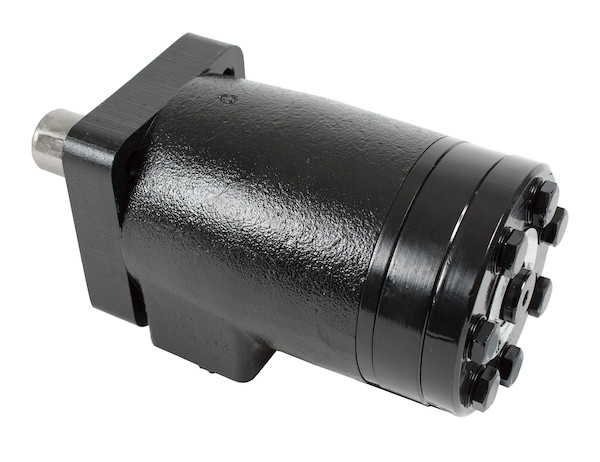

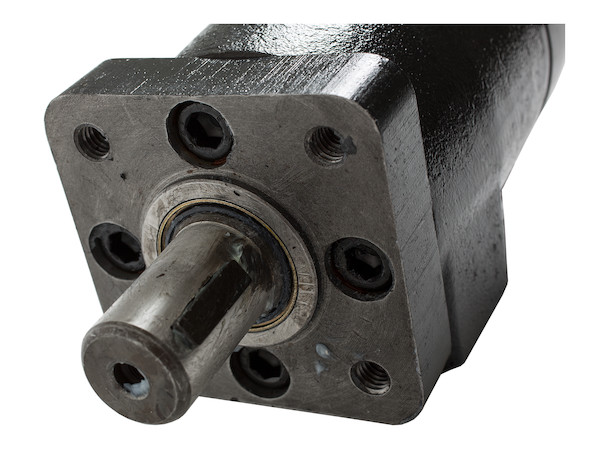

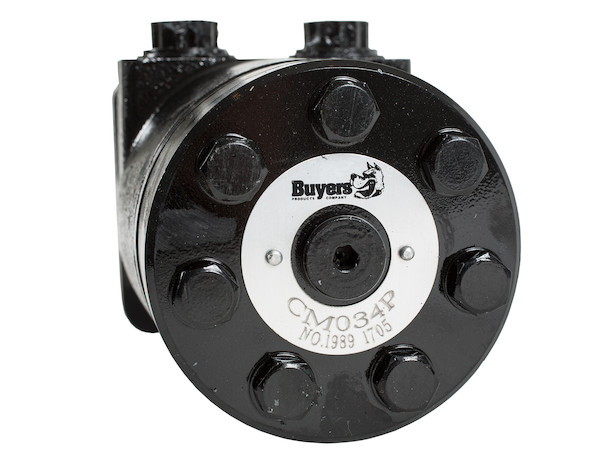

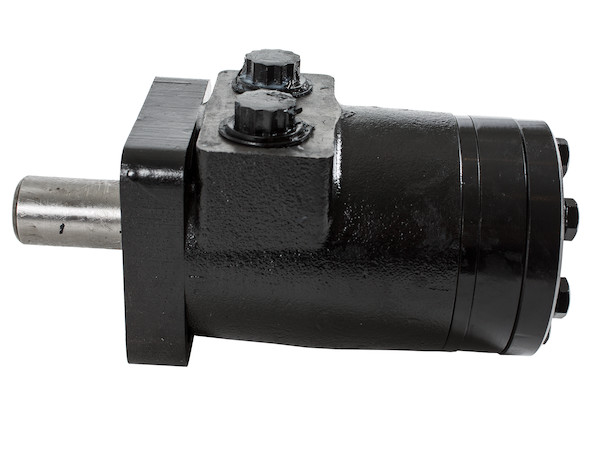

Replacement 17.9 CIR Hydraulic Auger Motor for SaltDogg® Spreader
Designed to be economical, compact, and powerful.
Technical Details
- Mfg #
- CM034P
- SKU
- CM034P
- UPC
- 724920108461
- NMFC #
- 125820
- Weight
- 13 lbs.
- Dimensions
- 10 × 6 × 5 inches
- Pressure ? Bar (Intermittent)
- 2400 poundpersqin
- Port Size
- 1/2 NPT
- Flow (Continuous)
- 15 gallonperminute
- Shaft Keyway
- 0.25 inch
- Shaft Size
- 1.00 inch
- Shaft Type
- Straight
- Maximum Speed at Intermittent Flow
- 702 RevolutionsPerMinute
- Maximum Speed (Continuous)
- 585 RevolutionsPerMinute
- Torque Rating (Continuous)
- 1100 inchpounds
- Pilot Diameter
- 1.75 inch
- Maximum Speed at Continuous Flow
- 585 RevolutionsPerMinute
- Material
- Cast Iron
- Minimum Starting Torque (Intermittent Pressure)
- 1510 inchpounds
- Maximum Case Pressure (Without Case Drain)
- 1500 poundpersqin
- Pressure ? Bar (Continuous)
- 1800 poundpersqin
- Torque Rating (Intermittent)
- 1510 inchpounds
- Input Mount Type
- 4 Bolt
- Compares To
- 101-1755-009
- Displacement
- 7.3 squareinch
- Minimum Starting Torque (Continuous Pressure)
- 1100 inchpounds
- Flow (Intermittent)
- 18 gallonperminute
