Product Information
Description:
Dump Body Vibrators

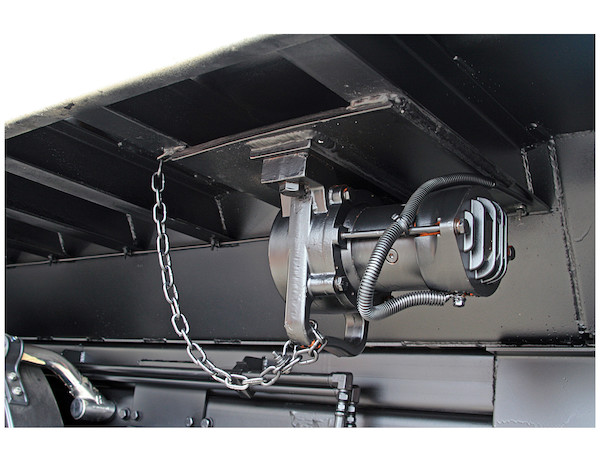

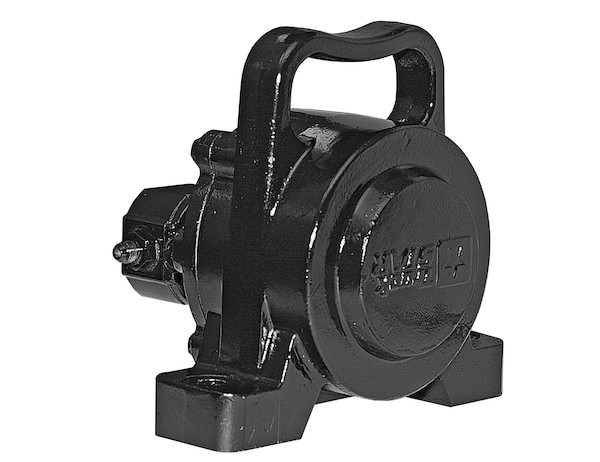

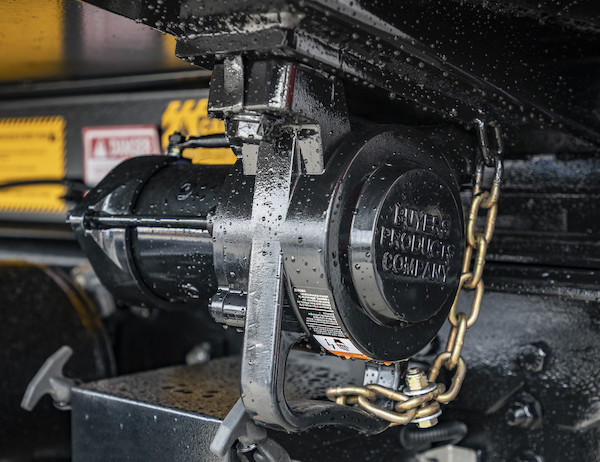

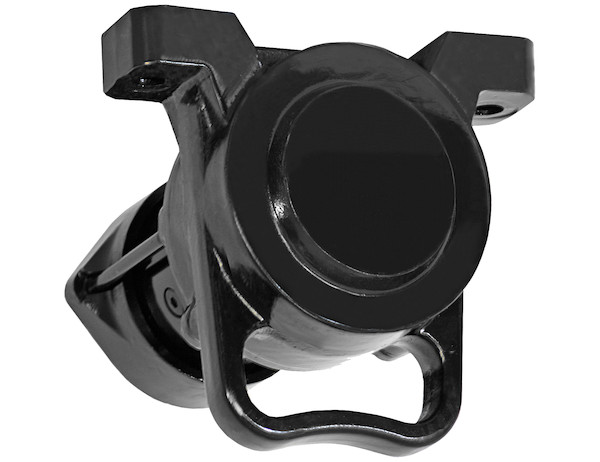

Buyers Products Dump Body Vibrator eliminates the back-breaking task of removing material from your truck. The vibrator shakes out stubborn or excess material, keeping your truck clean and ready for the next round. Permanently lubricated bearings and the 12V motor are O-ring sealed to protect against weather and grime.

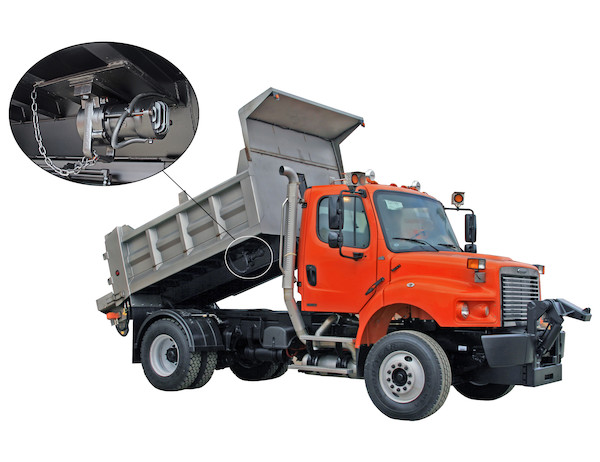

The Dump Body Vibrators includes mounting kits with everything needed to install them onto your vehicle.
Two models are available, based on the dump body size.
Use thousands of pounds of force to loosen excess materials in the truck body.
Features:
- Save on hard physical labor by letting thousands of pounds of force shake excess material from your truck.
- Protect from weather and grime with sealed bearings and motor.
- Mounting kit included for cohesive installation.
- Available with 2,500 lb of force for dump trucks 9-12 ft or 3,500 lb of force for dump trucks 13 ft or larger.
- Dump Body Applications
- Dump Trucks
- Work Trucks
Technical Details
- Mfg #
- DBV2500
- SKU
- DBV2500
- UPC
- 724920109536
- NMFC #
- 62120SUB3
- Weight
- 67 lbs.
- Dimensions
- 20 × 17 × 15 inches
- Use With
- Dump bodies
- Suggested Dump Body Length (ft)
- 9-12 feet
- Height (in.)
- 10.00 inch
- Weather Resistant (y/n)
- Y
- Force (lbs)
- 2500 pounds
- Width (in.)
- 10.00 inch
- Included Wiring Length (ft.)
- 50
- Switch Wiring Gauge
- 16 Gauge
- Wire Gauge
- 4
- Switch Wiring Length
- 20 feet
- Voltage
- 12 vdc
- Max Current
- 150 amps
- Length (in.)
- 12.00 inch
