Technical Details

Mfg #

16015100

SKU

16015100

UPC

724920234269

NMFC #

130195SUB2

Weight

295 lbs.

Dimensions

48 × 35 × 32 inches

Chain

Grade 70 5/16 Transport Chain

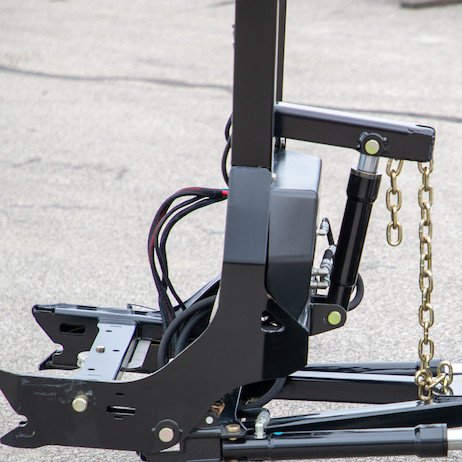

Lift Mechanism

Chain Lift

Attachment System

RapidLink™

Plow Light

LED or Dual Bulb Halogen

Plow Light Mount

Dual Stud

Light Electrical Connection

Headlamp Rated Replaceable Micro-ISO Relays

Control Harness Features

4 Gauge

Controller Type

NEW Ergonomic Handheld Controller

Connector Features

Overmolded w/Beryllium Copper Spring Cage Pins

Angling Relief Pressure

3000 poundpersqin

System Working Pressure

1850 poundpersqin

Lift Cylinder Size

1-1/2 x 6 inch

Angle Cylinder Action

Single Acting

Angle Cylinder Size

1-1/2 x 10 inch

Hydraulic Hose

SAE 100R17-6

Hydraulic Power Unit HP

2.0 horsepower

Hydaulic Power Unit Construction

Integrated Block Design w/SAE Cartridge Valves

Pivot Bolt

1.000 inch

A-frame Construction

Tubular
