Product Information
Description:

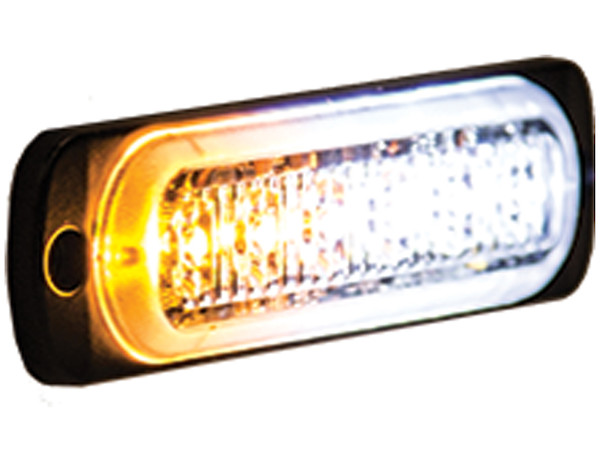

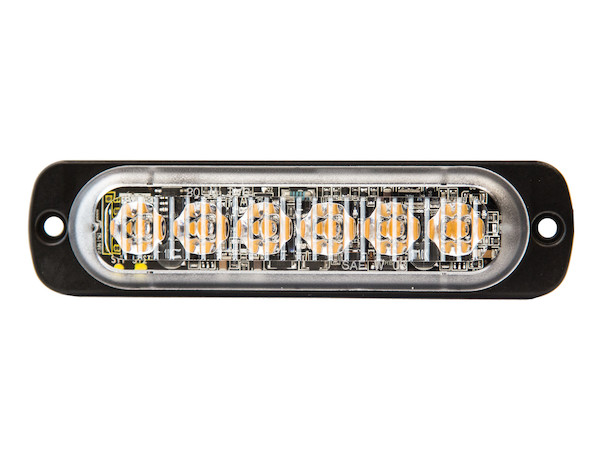

Thin 4.5 Inch Horizontal LED Strobe Light Series
Buyers Products Thin 4.5 Inch Horizontal LED Strobe Light Series is designed with a thin .35 in. profile to fit tight areas. The 12-24V strobe light has six LEDs and features 19 flash patterns with alternating and synchronous features.

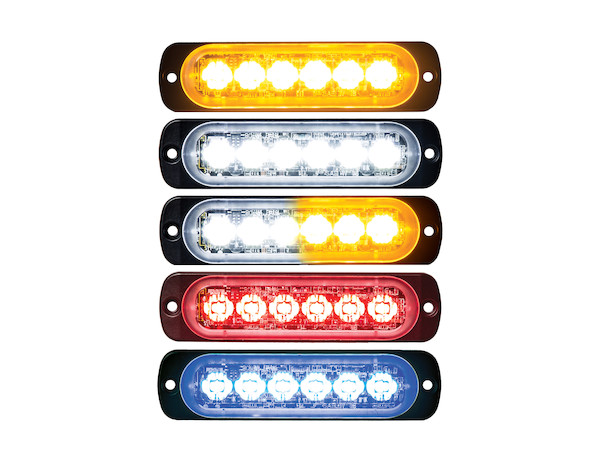

Lights are rated IP67 for water and dust resistance and are available in several colors. The solid colors have a SAE J595 Class 1 rating for brightness (if mounted horizontally) and CA13 certification. Bezels and 90° mounting brackets are sold separately.
Lights are backed with a 5 year warranty.
Solid colors rated SAE J595 Class I when mounted horizontally.
Features:
- Rated IP67 for water and dust resistance.
- Low profile and compact size fits in small spaces.
- Backed with a 5 year warranty.
- Work Trucks
- Trailers
Technical Details
- Mfg #
- 8891902
- SKU
- 8891902
- UPC
- 724920122788
- NMFC #
- 17870SUB9
- Weight
- 1 lbs.

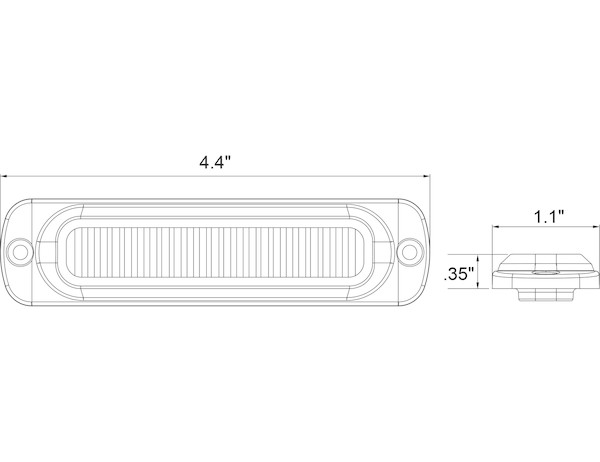

- Dimensions
- 5 × 2 × 2 inches
- Voltage
- 12-24 vdc
- Amp draw at 12 Volts
- 1 amps
- Type of Plug
- Blunt Cut

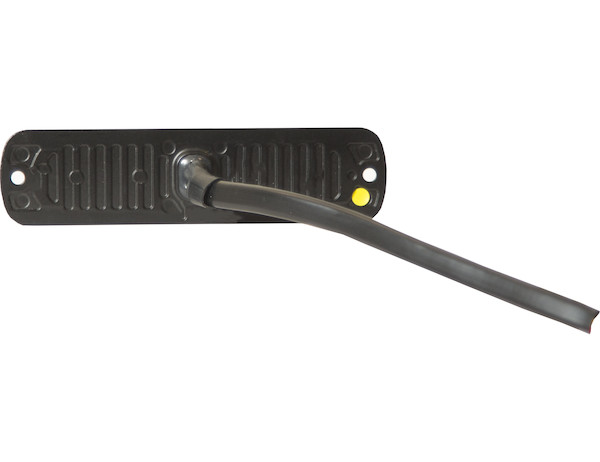

- Number of Wires
- 4
- Lead Length
- 9.5 inch
- Lens Shape
- Rectangular
- Hard Wired or Plug
- Hard Wired
- Certification
- SAE J595 Class 1, IP67
- Connector
- Blunt Cut

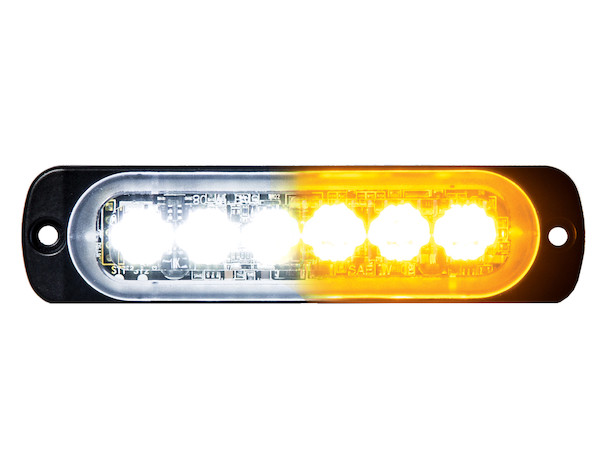

- Color
- Amber/Clear
- Housing Material
- Aluminum
- Base / Mount Type
- Surface
- Overall Width
- 4.400 inch
- Mount Type
- Surface
- Height
- 1.100 inch
- Class Level
- 1
- Synchronous Function
- Y
- Grommet/Base Included
- Y
- Number of Flash Patterns
- 19
- Alternating Function (Y/N)
- Y
- Color
- Amber/Clear
